Revolutionizing Coolness

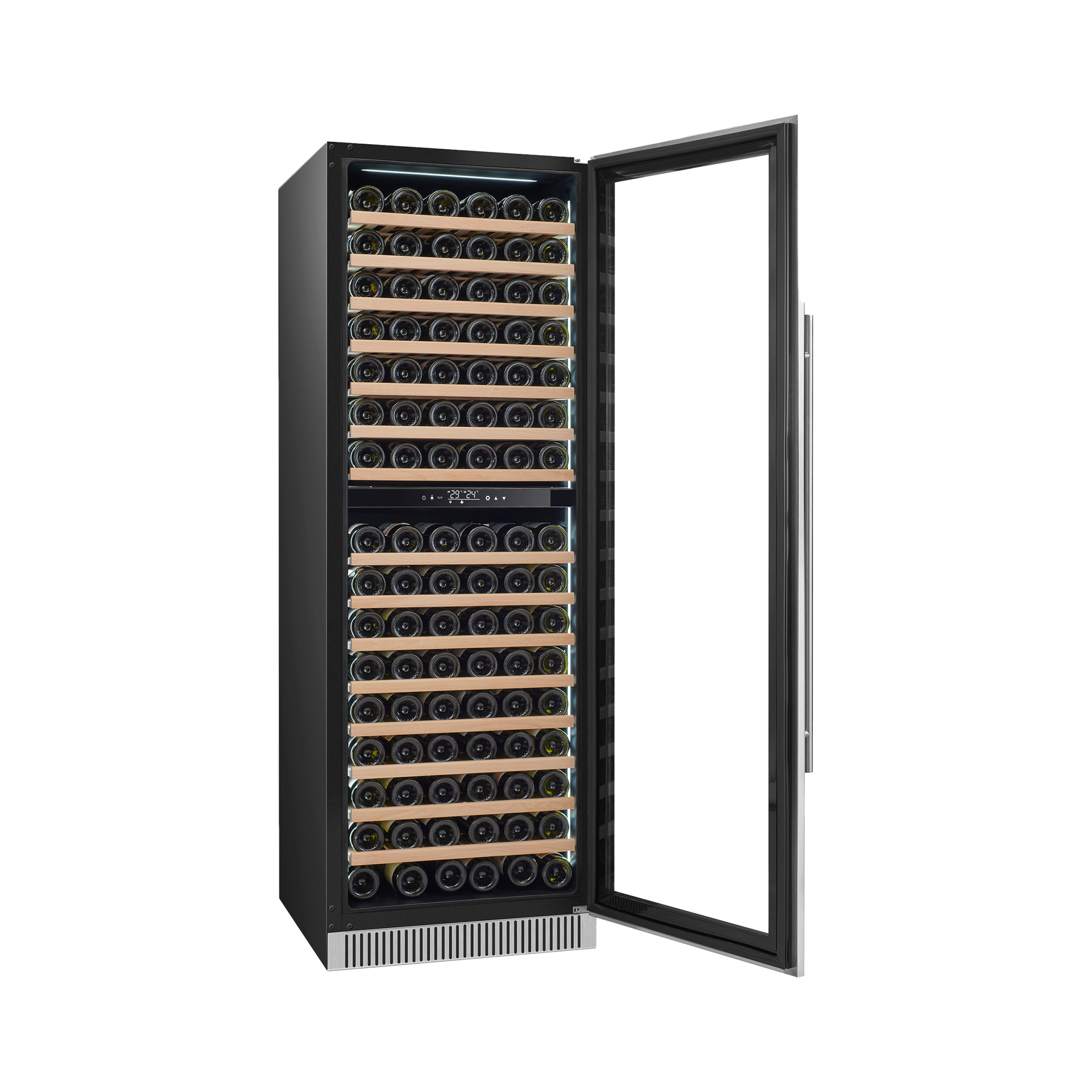

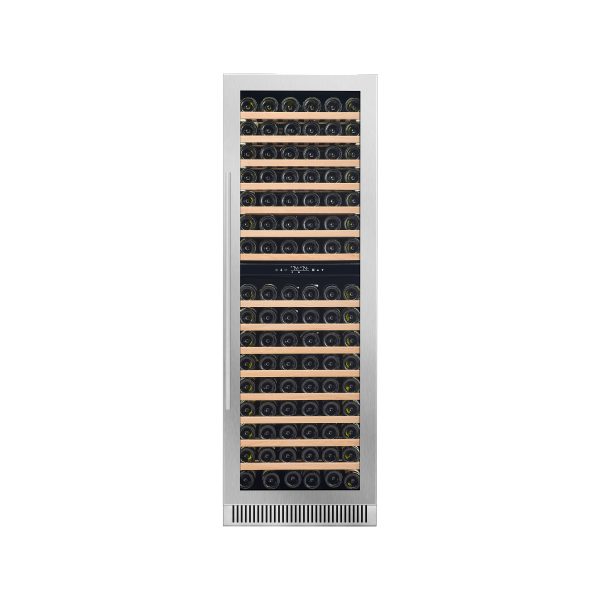

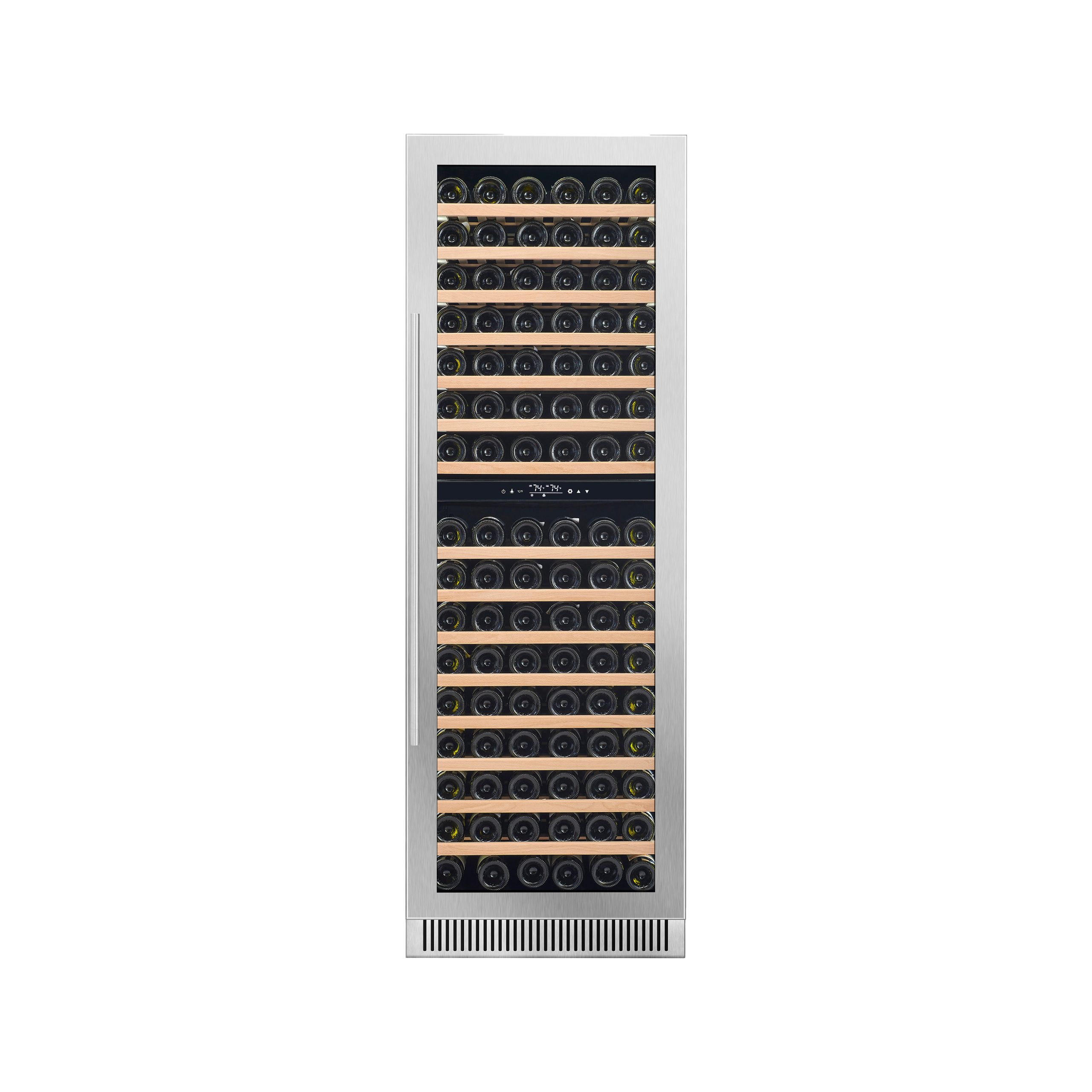

LD-185D Dual Zone

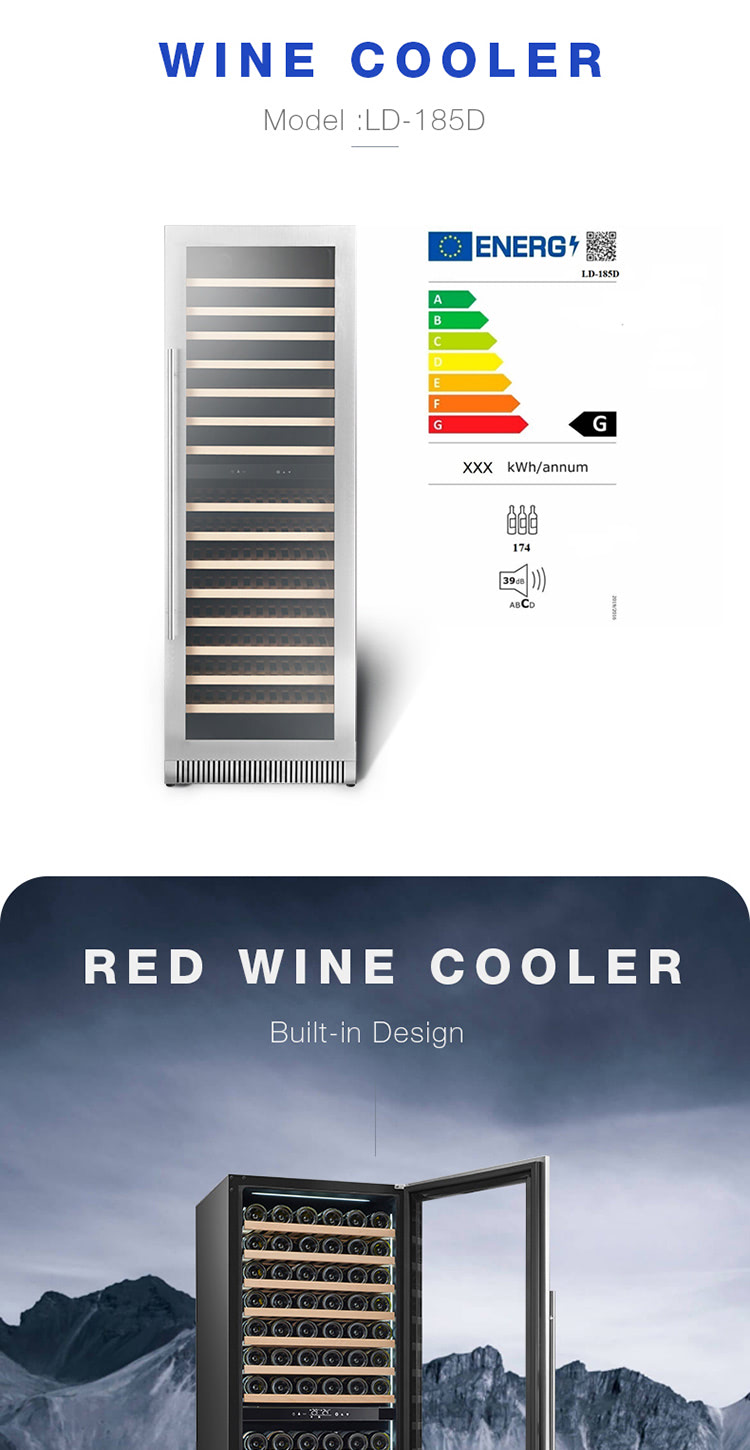

  • Energy consumption level: G
  • A Premium wine cooler with two cooling zones (4-12 / 12-22°C).
  • 15 removable beech wooden shelves
  • Stores up to 174 Bordeaux type bottles.
  • Capacity: upper 185L; lower 223L
  • Suited for built-in.
  • Low noise level < 39dB.
  • Black glass door or seamless stainless steel door.
  • Interior white/orange/blue LED light.

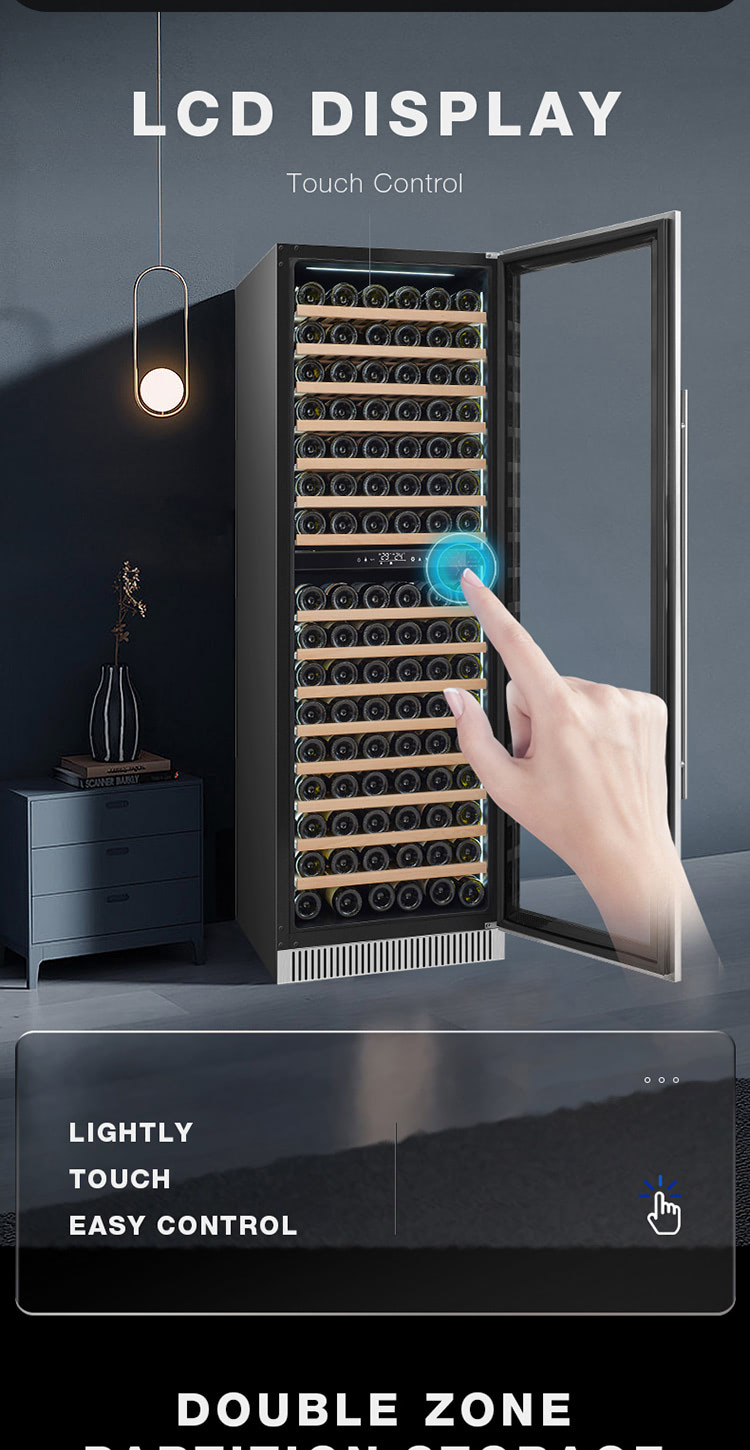

  • Backlit LCD info-display.
  • Features the top-performing Jiaxipera compressor.

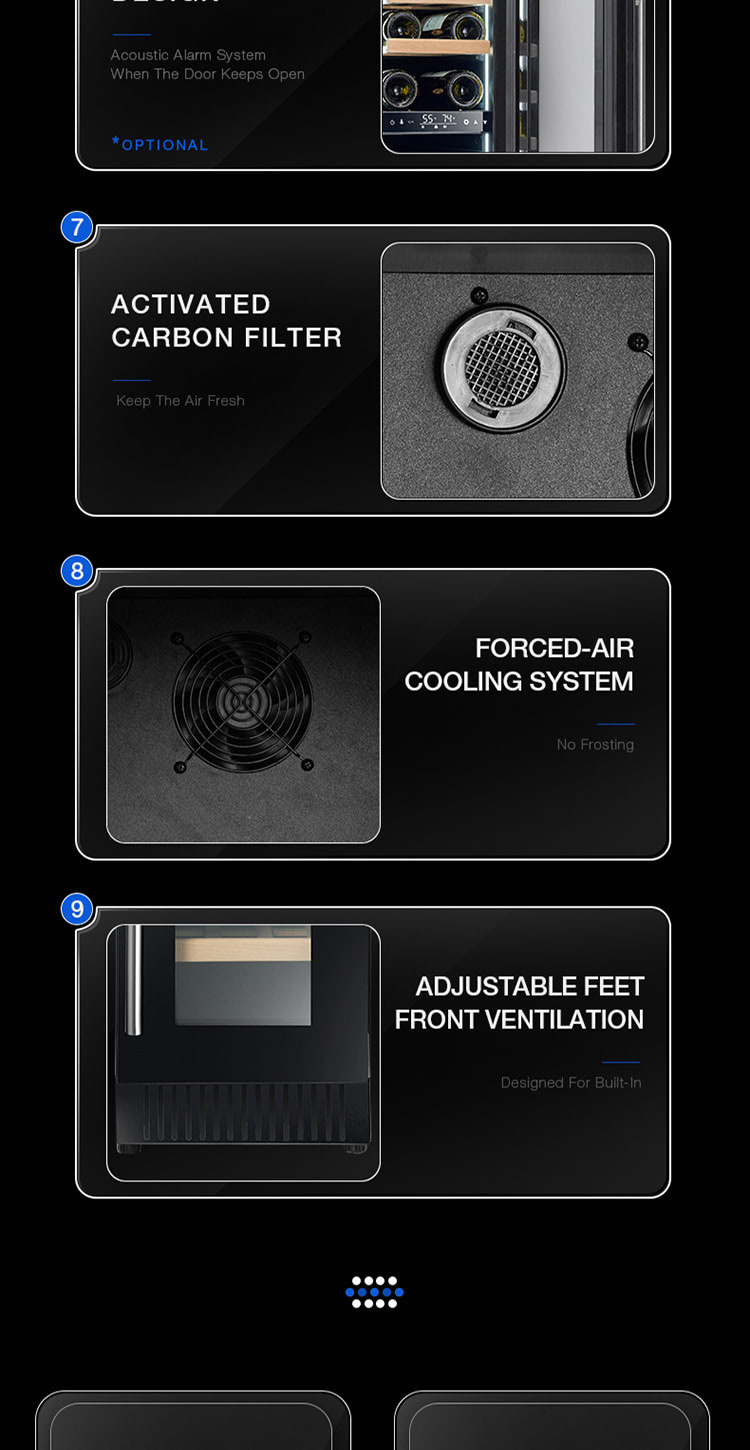

  • Active carbon filter
  • DC fan cooling system
  • Reversible door
  • Three layers of LOW-E glass door with UV resistance
  • Certification: CE/CB/EMC/ERP
  • OEM/ODM available

Technical Details

Additional information

Model

LD-185D

Certificate

CE、CB、EMC、ERP

Voltage&Frequency

220V~/50Hz

Rated Power(W)

60W

Rated Current(A)

0.45A

Climate Type(SN/N/ST/T)

N/SN

Temperature Zone

Dual-Zone

Temperature Range(℃)

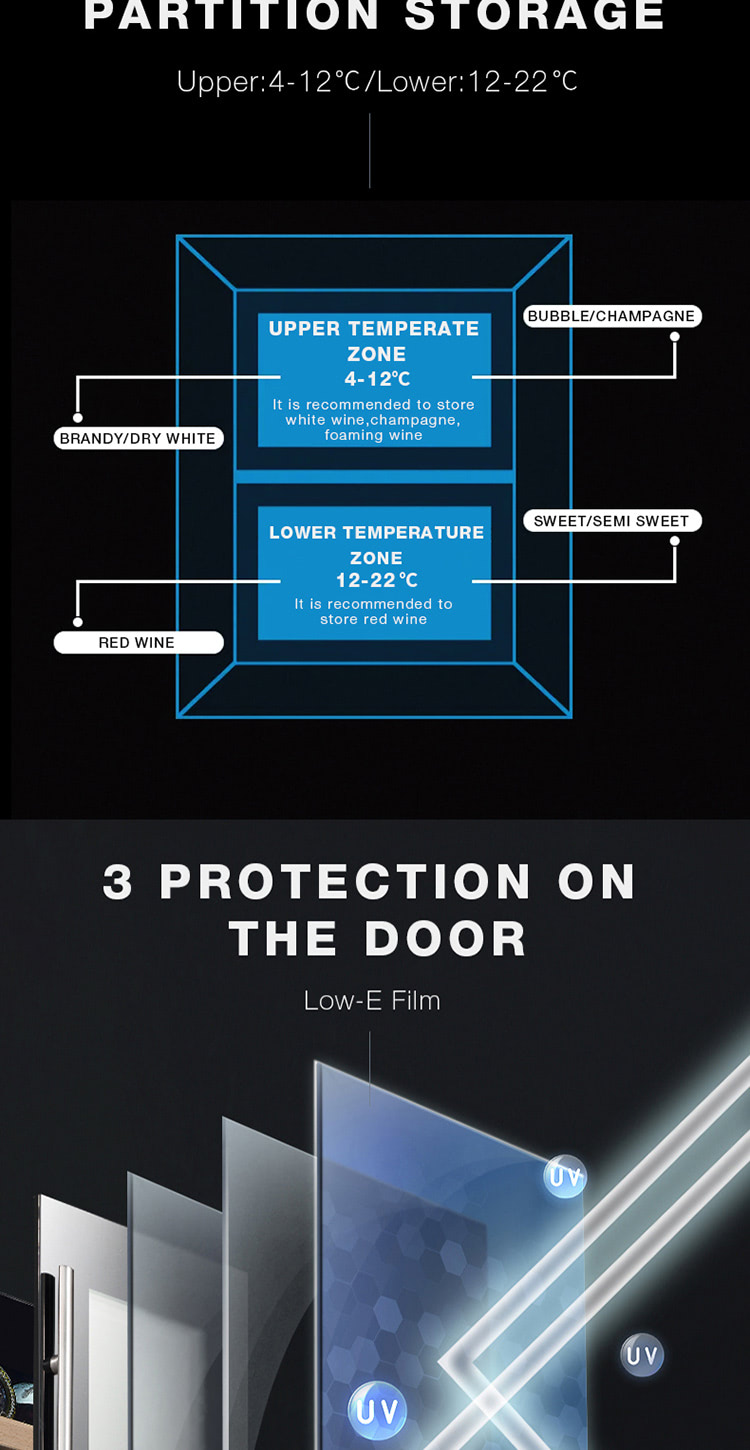

Upper:4-12 ℃, Lower:12-22 ℃

Standard Bottle(330ml)(Dia.66*H116)

/

Standard Wine Bottle(750ML)

174 Bottles

Shelves

15 Beech Shelves

Europe (New ERP) 2024 Standard

G

America Standard (DOE/ESTAR)

/

LED Light Specification/Power

1Meter/2-3W

LED Light Position

Left&Right Side

LED Light Color

White

Defrosting Method

Periodic Defrosting

Defrosting Power(W)

Shutdown Defrosting

Refrigerant/Volume

R600a/47g

Compressor Brand/Model

Jiaxipera/VTX1111Y

Capacity(L)

Upper 185L + Lower 223L

Noise(dB/A)

< 39 dB/A

Net Weight(KG)

85KG

Gross Weight(KG)

100KG

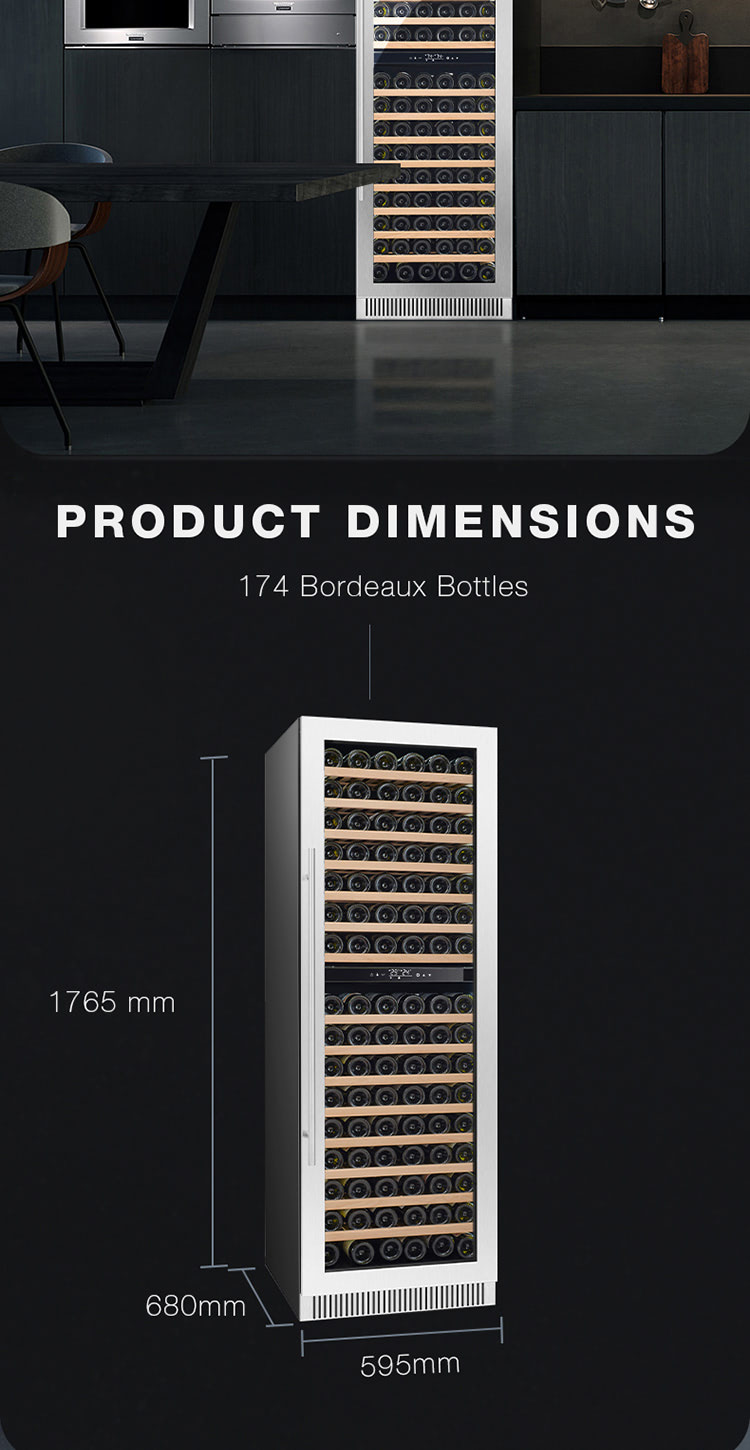

Product Size mm(W*D*H)

595*680*1762

Packing Size mm(W*D*H)

659*759*1825(1949 with wood pallet)

Loading QTY(20FT/40FT/40HQ)

21/51/51

Temperature Control

Electronic, LCD Display

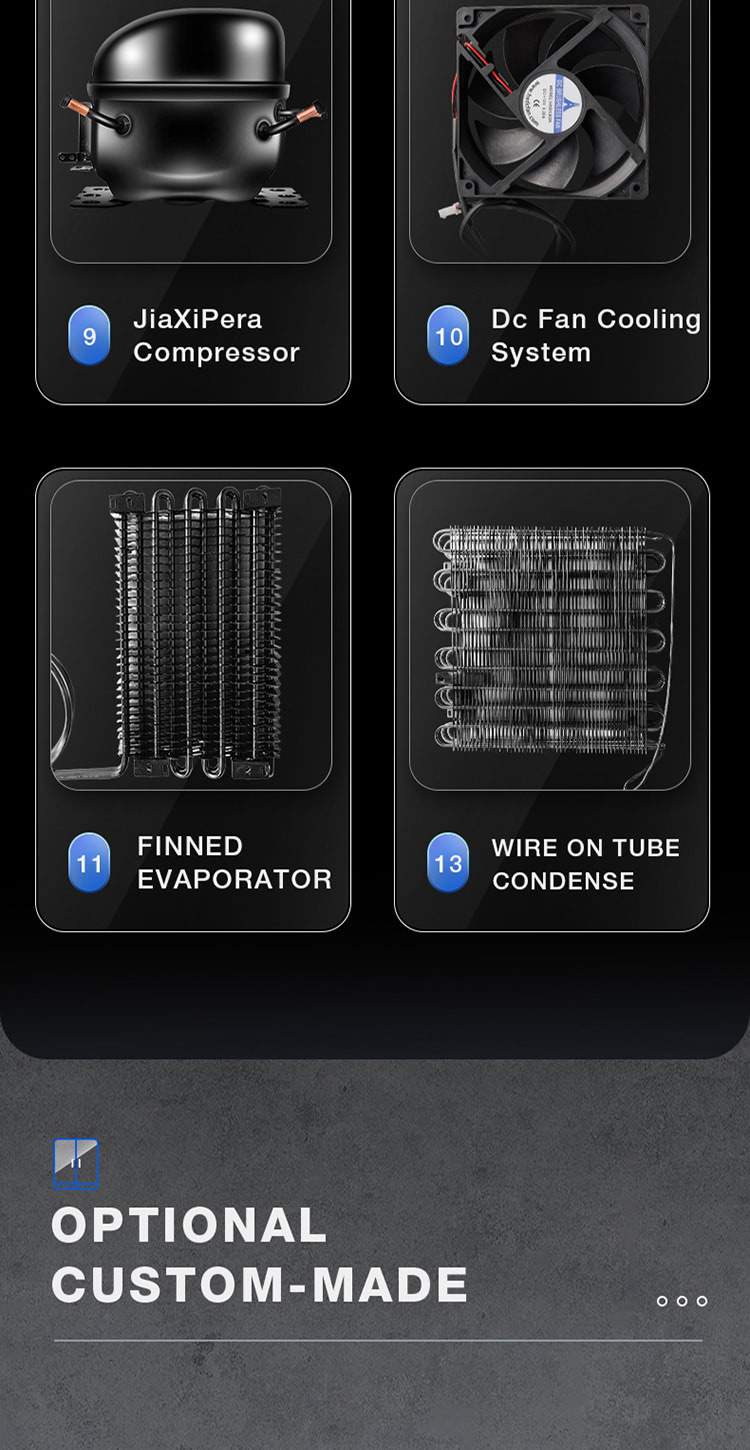

Evaporator Type

Fin

Evaporator Fan Type

Oil Bearing Motor

Condenser Type

Wire On Tube

Condenser Fan Type

Ball Bearing Motor

Door Type

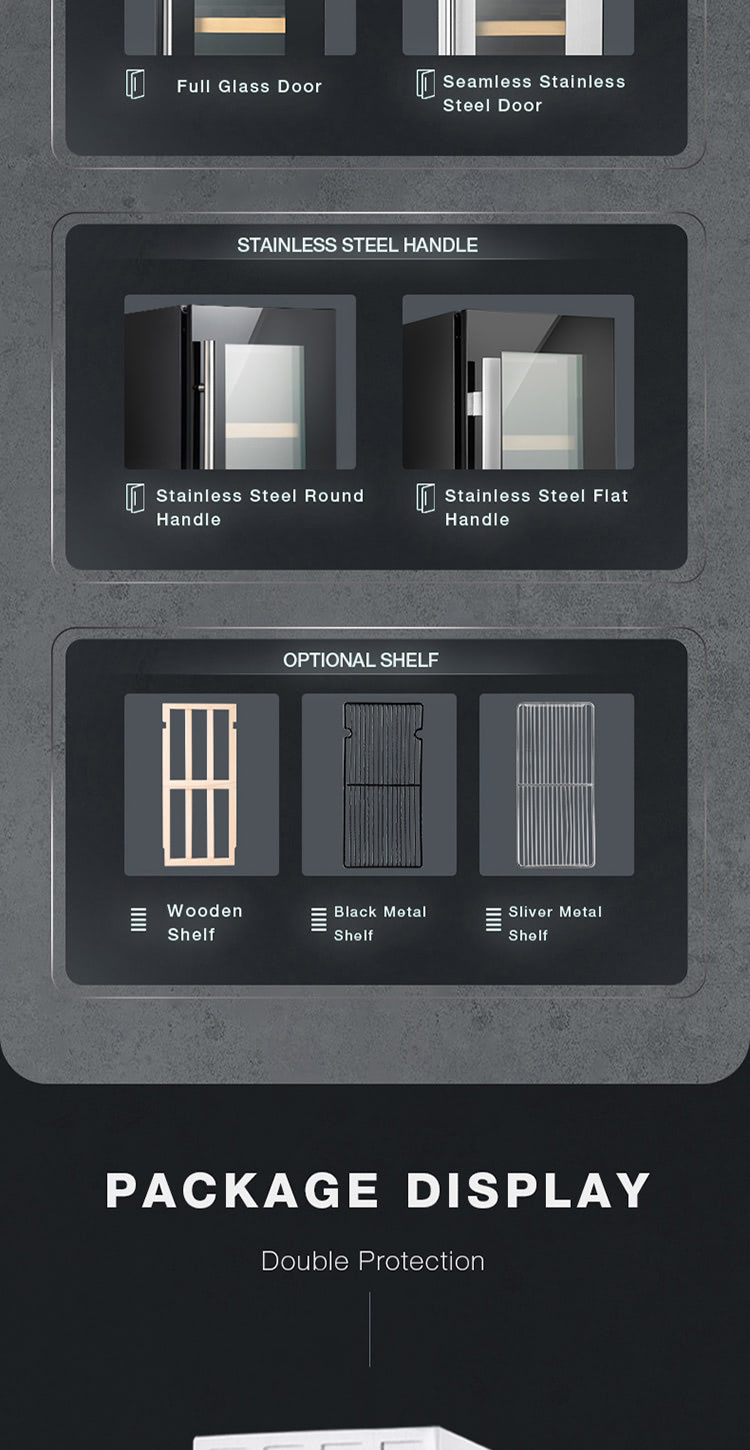

Full Glass or Seamless SUS304

Handle Type

Stainless Steel 304

Inner Frame

HIPS Black

Outer Frame

Stainless Steel 304 Black

Glass Type

3 Layer Low-E Glass, UV Resistant, Black

Reversible Door

Yes

Active Carbon Filter

Yes

Installation

Free Standing or Built-in

Optional Setting

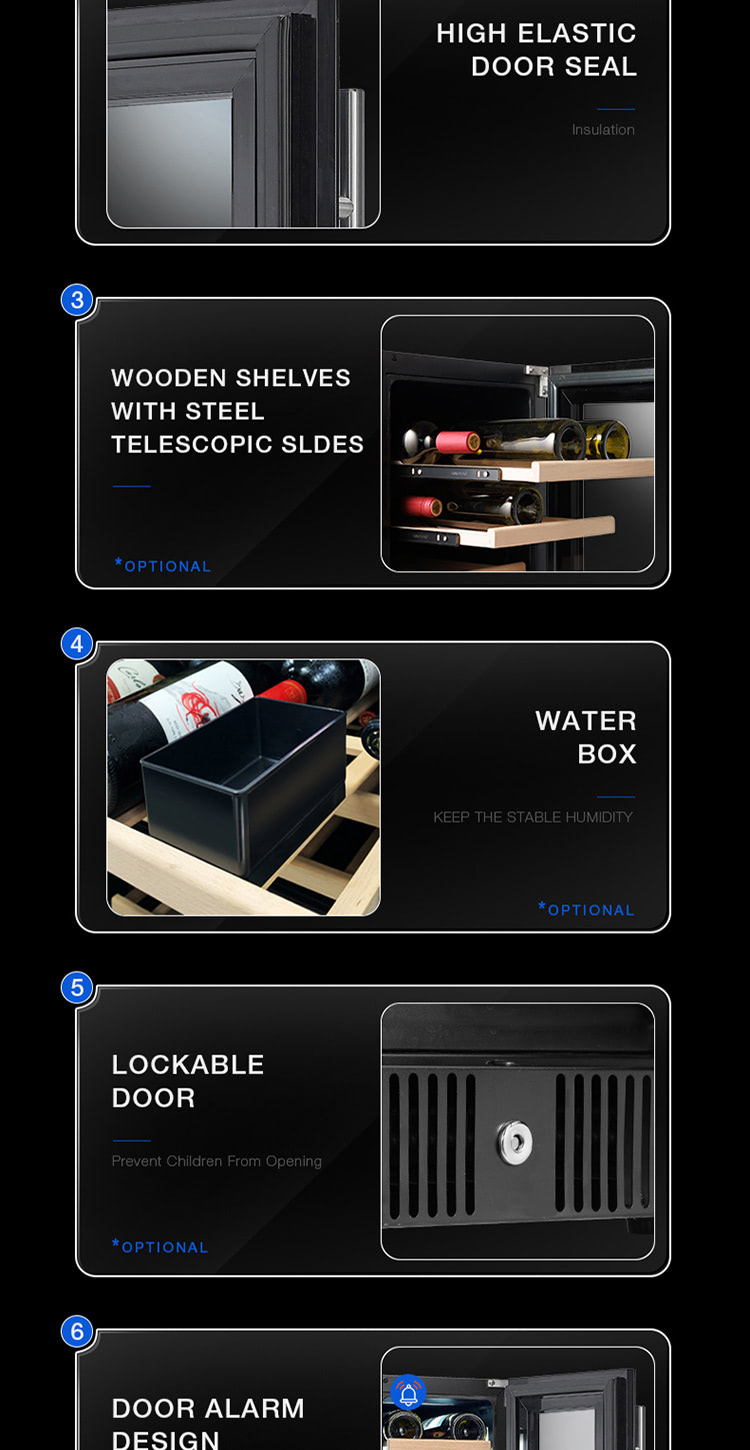

Child Lock, Door-Open Alarm, App Remote Control, Three Color LED Lighting, Wooden Shelves With Steel Telescopic Slides, Water Box, Finned Condenser

FAQ

CB/ CE/ EMC/ ERP/ DOE/ ETL.

3 year for compressor, 1 year for complete wine refrigerator.

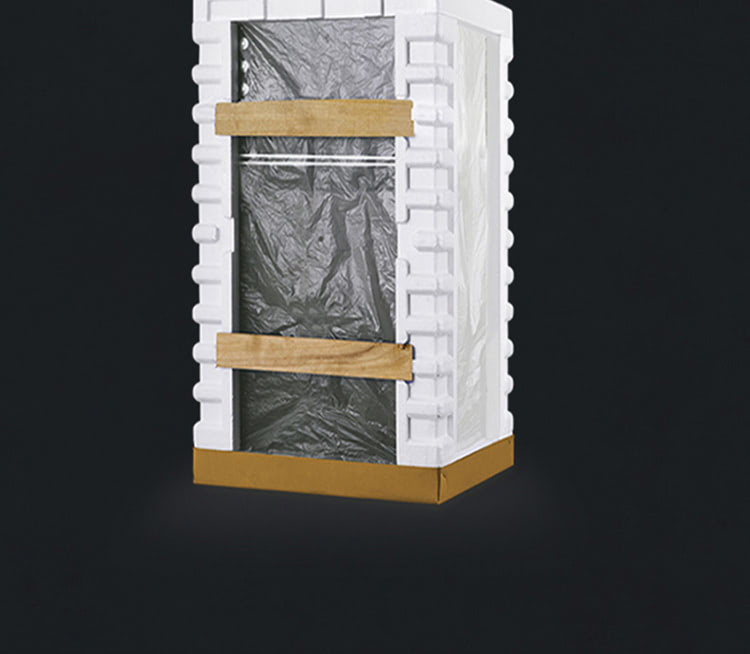

Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,we can pack the goods in your branded boxes after getting your authorization letters.

T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

EXW,  FOB,  CFR,  CIF,  DDU.

Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost. The lead-time of sample is about 7 days.

Yes, we have 100% test before delivery.
